Back Panel

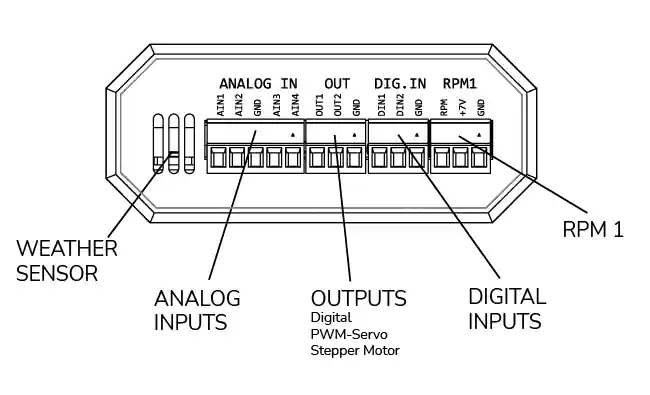

Back Panel (DS)

RPM1: Flywheel/Roller Rotation Sensor

RPM input from roller or flywheel sensor.

Read more...

DIG. IN: Remote Control Switch/ Digital Inputs

Two digital inputs. Can be used with a button for controlling the software remotely.

Read more...

OUT: Digital or Analog Outputs

Digital or Analog outputs to control a fan or some other device. The output can be configured to supply either a voltage, PWM output or Stepper motor control signal.

Read more...

ANALOG IN: Analog Inputs

Four analog inputs. The lambda probe is typically connected here. Pressure sensors or NTC temperature sensors can also be connected int these inputs.

Read more...

WEATHER SENSOR:

The sensor that captures ambient temperature, barometric pressure and humidity is behind this vent.

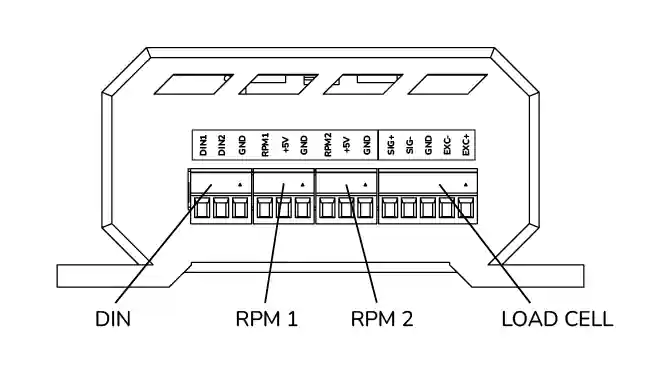

Back Panel

RPM1: Flywheel/Roller Rotation Sensor

RPM input from roller or flywheel sensor.

Read more...

DIN: Remote Control

Pushbutton input for controlling the software remotely.

Read more...

RPM2: Secondary Rotation Sensor

Can be used for a secondary roller on AWD dynos, or you can enter an engine RPM from a clean 5V source.

Read more...

Load Cell Input

Load Cell Input for measuring torque in braking dynos.

Read more...

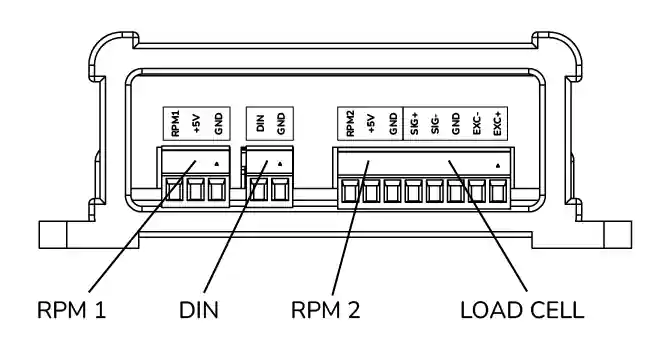

Back Panel

RPM1: Flywheel/Roller Rotation Sensor

RPM input from roller or flywheel sensor.

Read more...

DIN: Remote Control

Pushbutton input for controlling the software remotely.

Read more...

RPM2: Secondary Rotation Sensor

Can be used for a secondary roller on AWD dynos, or you can enter an engine RPM from a clean 5V source.

Read more...

Load Cell Input

Load Cell Input for measuring torque in braking dynos.

Read more...
